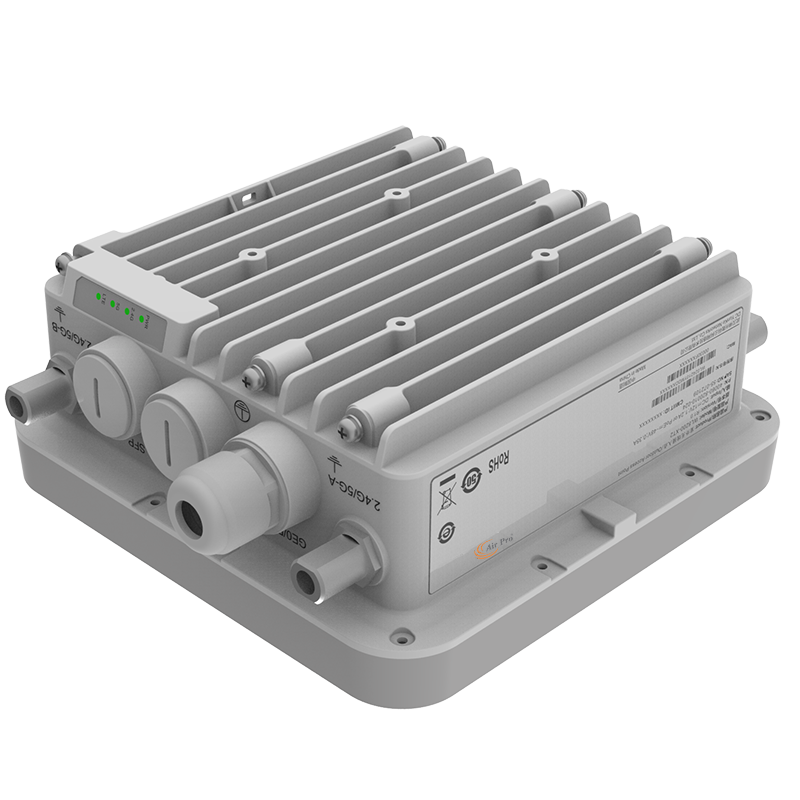

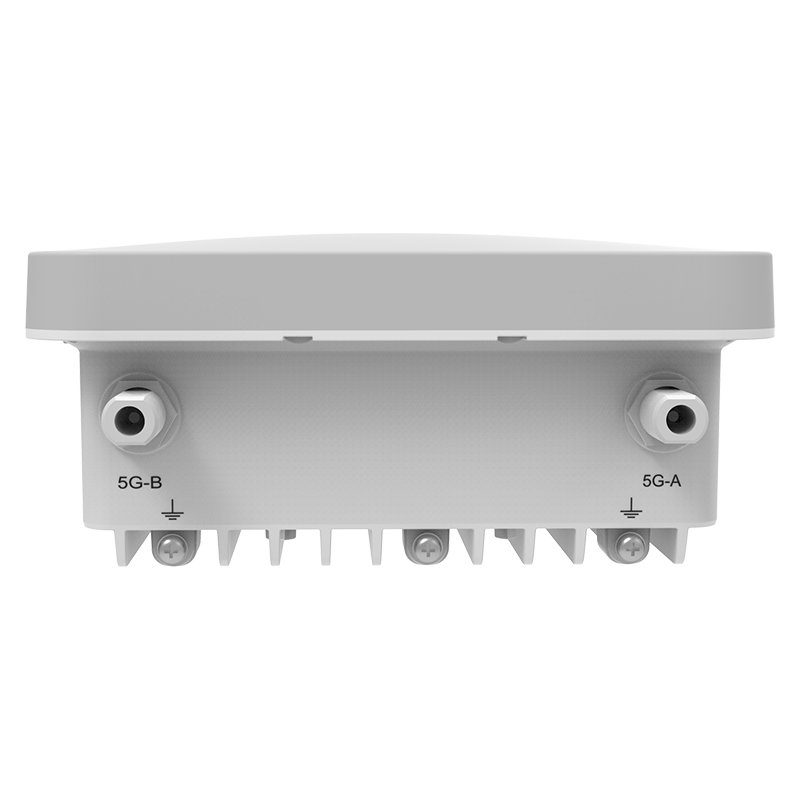

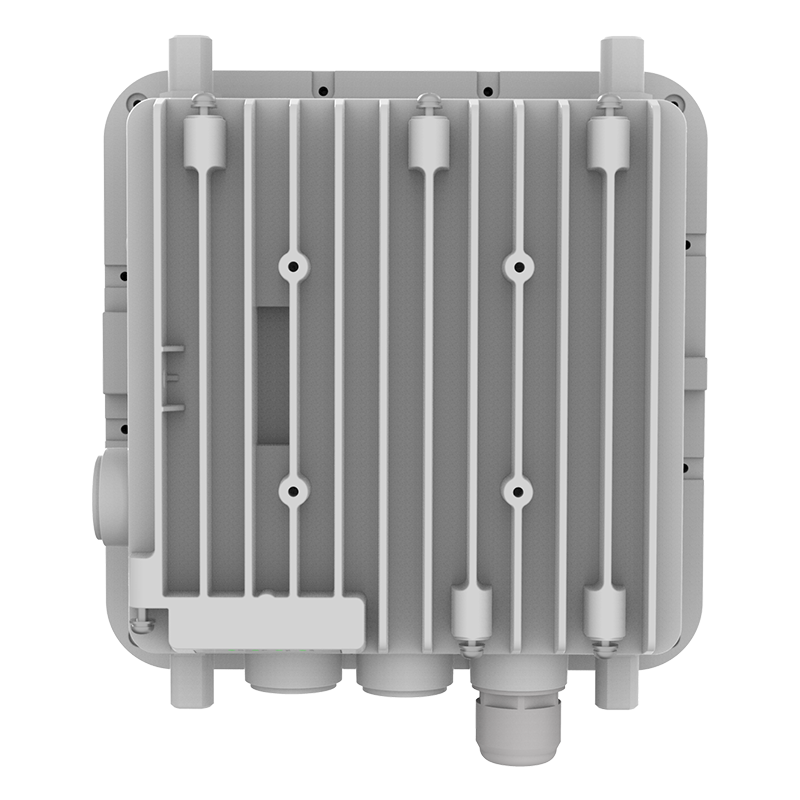

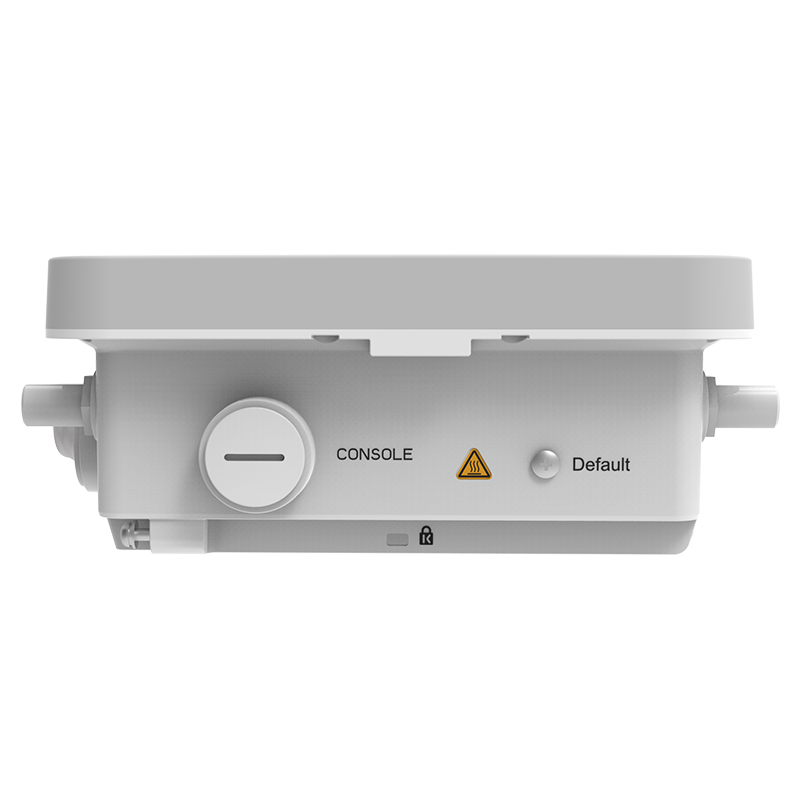

AIR-AP690EX(ODU)
Extended Reach. High-Speed Connectivity.
- High-level outdoor 802.1ax wireless access
- Fiber uplink for long-distance connection
- High-performance RF
- Support WDS mode
- Cloud management
Product Overview
AirPro AIR-AP690EX(ODU) is high performance outdoor wireless access point which can support 2.4 GHz and 5 GHz band, adopting technologies such as Multi-User Multiple-Input Multiple-Output (MU-MIMO) and orthogonal frequency division multiplexing (OFDM), providing a data transmission rate of at most 575 Mbps in 2.4GHz band and 1200Mbps in 5GHz band. It supports up to 254 concurrent users. With external antenna, AIR-AP690EX(ODU) is widely used at outdoor WIFI coverage networks, such as campus, streets, rural area, resorts and scenic spots.
Key Features
High-level outdoor 802.1ax wireless access
The AIR-AP690EX(ODU) supports the 802.11ax standard and can operate in 2.4 GHz and 5 GHz both bands. It provides an access bandwidth up to 1.775Gbps, which can connect users up to 254 simultaneously.
Fiber uplink for long-distance connection
Fiber port used as uplink ports, which break through the limitations of the conventional copper port, the distance is no longer a bottleneck.
Operating in a wide temperature range
Thanks to deliberate hardware design and the selection of dedicated components it can operate in a broad temperature range from -40°C to 65°C.
Highest IP68 Anti-dust & water standard
AIR-AP690EX(ODU) comply IP68 can be deployed in the harshest outdoor environment.
Multiple antenna options
AIR-AP690EX(ODU) supports external antennal (omnidirectional, directional), the customer can make use accordingly.
Good PoE compatibility
AIR-AP690EX(ODU) can work well with the third-party PoE switches that support 802.3at standard.
High-performance RF
The professional optimized design is employed for the RF module of the AIR-AP690EX(ODU), integrated directional antenna supports 27 dB transmission power which can greatly improve wireless coverage.
Support WDS mode
Support WDS mode under both fit/fat AP mode. Use 2.4GHz and 5GHz achieve a wireless bridging function
Cloud management
AIR-AP690EX(ODU can operate with the AirPro cloud platform seamless to provide a better cost-performance solution;
Dual-mode fit & fat
AIR-AP690EX(ODU can work in fit or fat mode and can flexibly switch between the fit mode and the fat mode according to network planning requirements.
Hardware Specifications
| Dimensions (L*W*D) (mm) | 245 × 200 × 90 |
| Working Frequency | 2.4G：802.11b/g/n/ax 5G：802.11a/n/ac/ax |
| Maximum Data Rate | 2.4G：575Mbps 5G：1200Mbps |
| Physical Port | 1 * 10/100/1000Base-T PoE port for uplink 1 * 1000M SFP fiber port |
| PoE | 802.3at |
| Maximum power consumption |
< 23.4W |
| Antenna | External antenna |
| Working frequency band |
802.11a/n/ac: 5.150 GHz to 5.850 GHz 802.11b/g/n/ax: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150～5.350GHz 5.47～5.725GHz 5.725～5.850GHz |
| Modulation technology | 11b：DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n：MIMO-OFDM: BPSK, QPSK,16QAM,64QAM 11ac：MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM 11ax: MIMO-OFDMA: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM |
| Transmit power | 2.4G: 27dBm 5G : 27dBm (Note：final output power comply with deployment regulation might be different) |
| Power adjustment granularity |
1 dBm |
| Working/Storage temperature | -40°C to +65°C –45°C to +80°C |
| Working/Storage RH | 5% to 95% (non-condensing) |
| Protection level | IP68 |
Software Specifications
| WLAN | Product positioning | Outdoor dual frequency |
| Working frequency band | 2.4 GHz and 5 GHz | |
| Bandwidth performance | 1775Mbps | |
| Virtual AP (BSSID) | 32 | |
| Concurrent user | 254 | |
| Number of spatial streams | 2.4G: 2 5G:2 | |
| Dynamic channel adjustment (DCA) | Yes | |
| Transmit power control (TPC) | Yes | |
| Blind area detection and repair | Yes | |
| SSID hiding | Yes | |
| RTS/CTS | Yes | |
| RF environment scanning | Yes | |
| Hybrid access | Yes | |
| Restriction on the number of access users | Yes | |
| Link integrity check | Yes | |
| Accessing control of terminals based on signal strength | Yes | |
| Forcing terminals to roam based on signal strength | Yes | |
| Intelligent control of terminals based on airtime fairness | Yes | |
| High-density application optimization | Yes | |
| 802.11ax | Space streams | 2.4GHz:2, 5GHz:2 |
| Frequency band | 2.4GHz + 5GHz | |
| 80 MHz bundling | Yes | |
| 1200Mbps（PHY） | Yes | |
| Frame aggregation (A-MPDU) | Yes | |
| Frame aggregation (A-MSDU) | Yes | |
| Maximum likelihood demodulation (MLD) | Yes | |
| Transmit beamforming (TxBF) | Yes | |
| Maximum ratio combining (MRC) | Yes | |
| Space-time block coding (STBC) | Yes | |
| Low-density parity-check code (LDPC) | Yes | |
| Security | Encryption | 64/128 WEP, TKIP, and CCMP encryption |
| 802.11i | Yes | |
| Portal authentication | Yes | |
| WAPI | Yes | |
| MAC address authentication | Yes | |
| LDAP authentication | Yes | |
| PEAP authentication | Yes | |
| WIDS/WIPS | Yes | |
| Protection against DoS attacks | Anti-DoS for wireless management packets | |
| Forwarding security | Frame filtering, white list, static blacklist, and dynamic blacklist | |
| User isolation | AP L2 forwarding suppression Isolation between client |
|
| Periodic SSID enabling and disabling | Yes | |
| Access control of free resources | Yes | |
| Wireless SAVI | Yes | |
| ACL | Access control of various data packets such as MAC, IPv4, and IPv6 packets | |
| Secure access control of APs | Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC | |
| 802.11W | Yes, encryption of management frames | |
| Forwarding | IP address setting | Static IP address configuration or dynamic DHCP address allocation |
| IPv6 forwarding | Yes | |
| IPv6 portal | Yes | |
| Local forwarding | Yes | |
| Multicast | IGMP snooping | |
| Roaming | Yes | |
| AP switching reference | Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc. | |
| WDS | Yes | |
| QoS | WMM | Yes |
| Priority mapping | Ethernet port 802.1P identification and marking Mapping from wireless priorities to wired priorities |
|
| QoS policy mapping | Mapping of different SSIDs/VLANs to different QoS policies Mapping of data streams that match with different packet fields to different QoS policies |
|
| L2-L4 packet filtering and flow classification | Yes: MAC, IPv4, and IPv6 packets | |
| Load balancing | Load balancing based on the number of users Load balancing based on user traffic Load balancing based on frequency bands |
|
| Bandwidth limit | Bandwidth limit based on APs Bandwidth limit based on SSIDs Bandwidth limit based on terminals Bandwidth limit based on specific data streams |
|
| Call admission control (CAC) | CAC based on the number of users | |
| Power saving mode | Yes | |
| Automatic emergency mechanism of APs | Yes | |
| Intelligent identification of terminals | Yes | |
| Multicast enhancement | Multicast to unicast | |
| Management | Network management | Centralized management through an AC; both fit and fat modes |
| Maintenance mode | Both local and remote maintenance | |
| Log function | Local logs, Syslog, and log file export | |
| Alarm | Yes | |
| Fault detection | Yes | |
| Statistics | Yes | |
| Switching between the fat and fit modes | An AP working in fit mode can switch to the fat mode through a wireless AC; An AP working in fat mode can switch to the fit mode through a local control port or Telnet. |
|
| Remote probe analysis | Yes | |
| Watchdog | Yes | |
| Value added service | Value added marketing | Support: various apps based on intelligent terminals, advertising push based on location, personalized push of portals |
| Value added authentication | WeChat, SMS, QR code | |
| Passenger flow analysis | yes |
