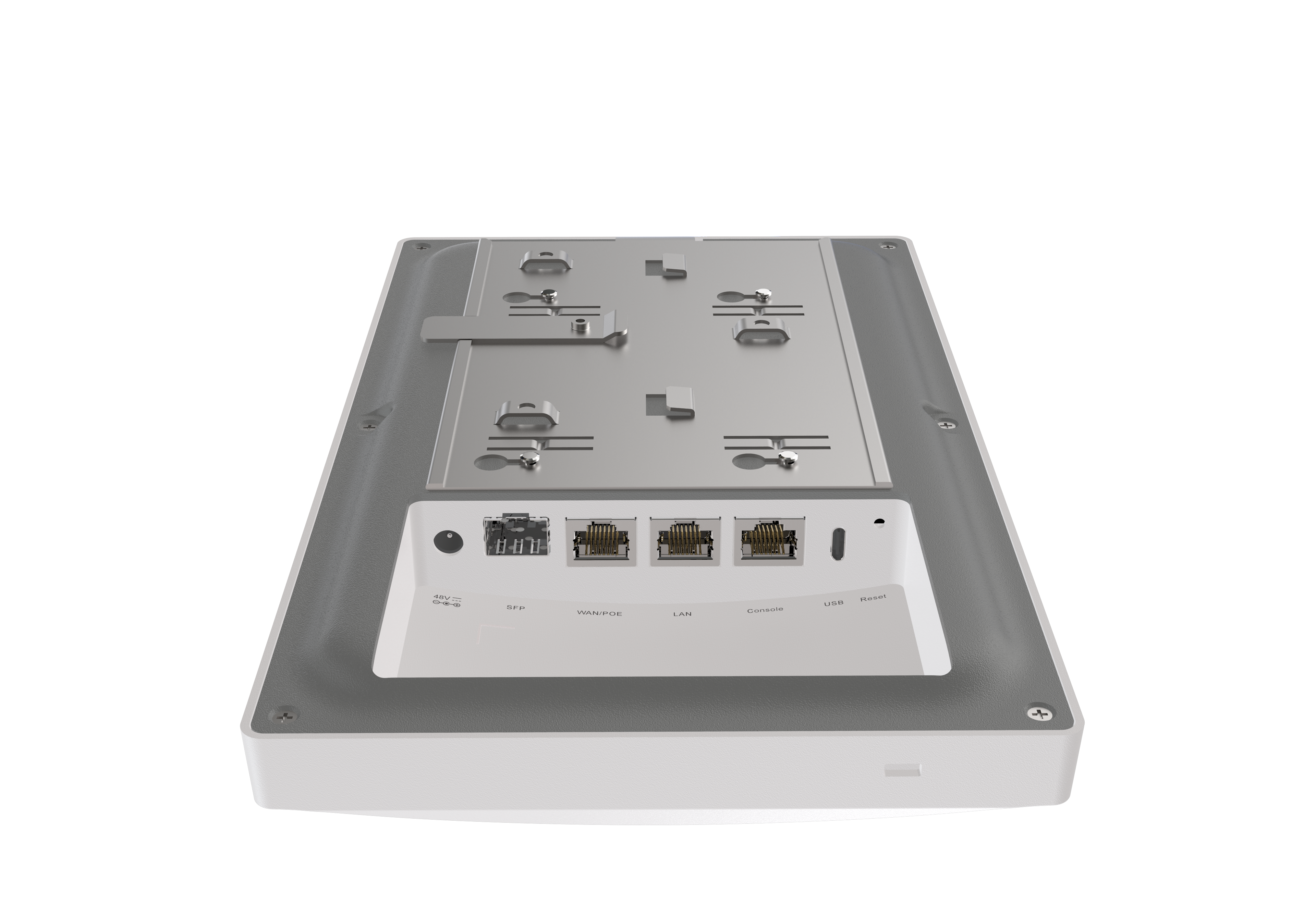

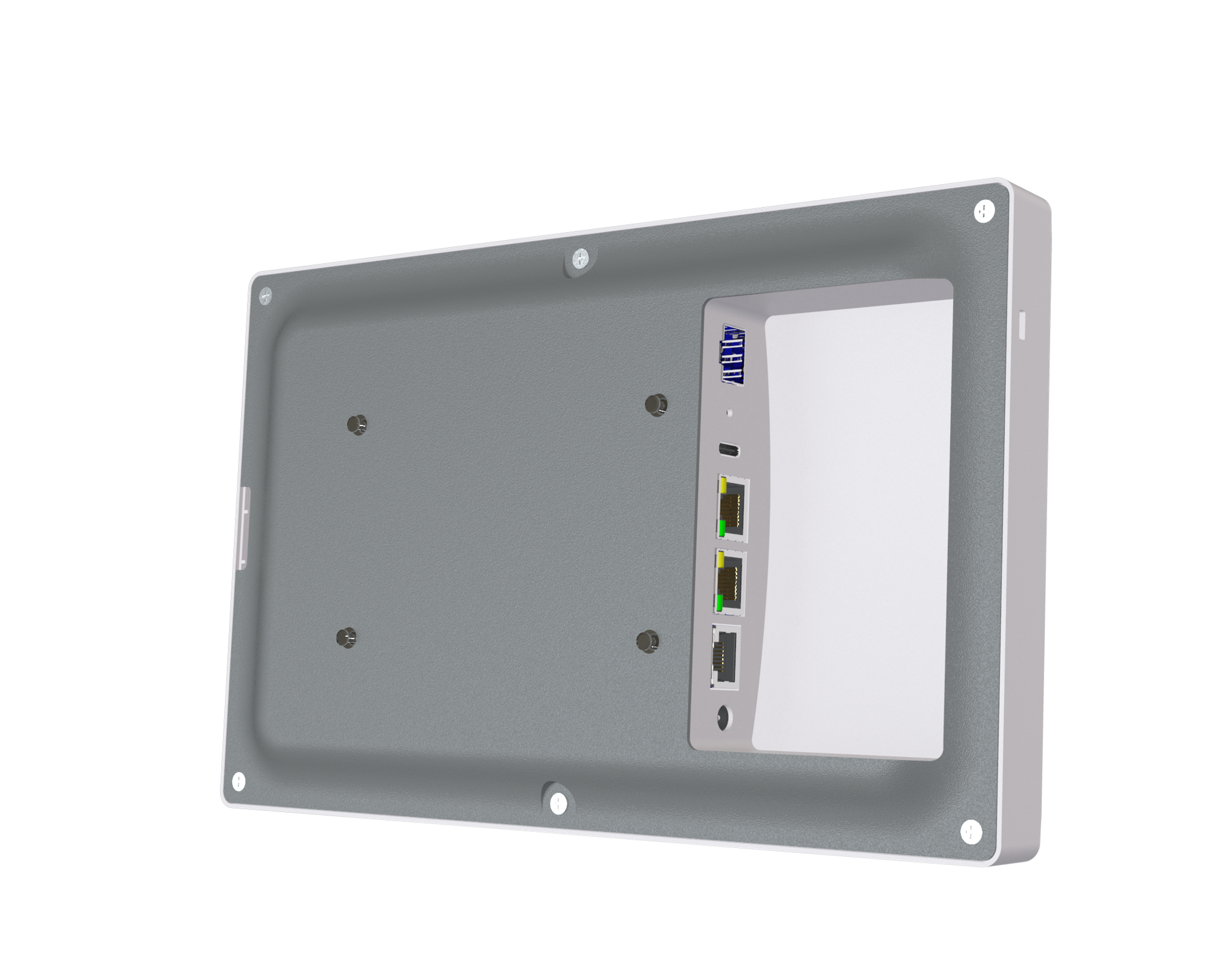

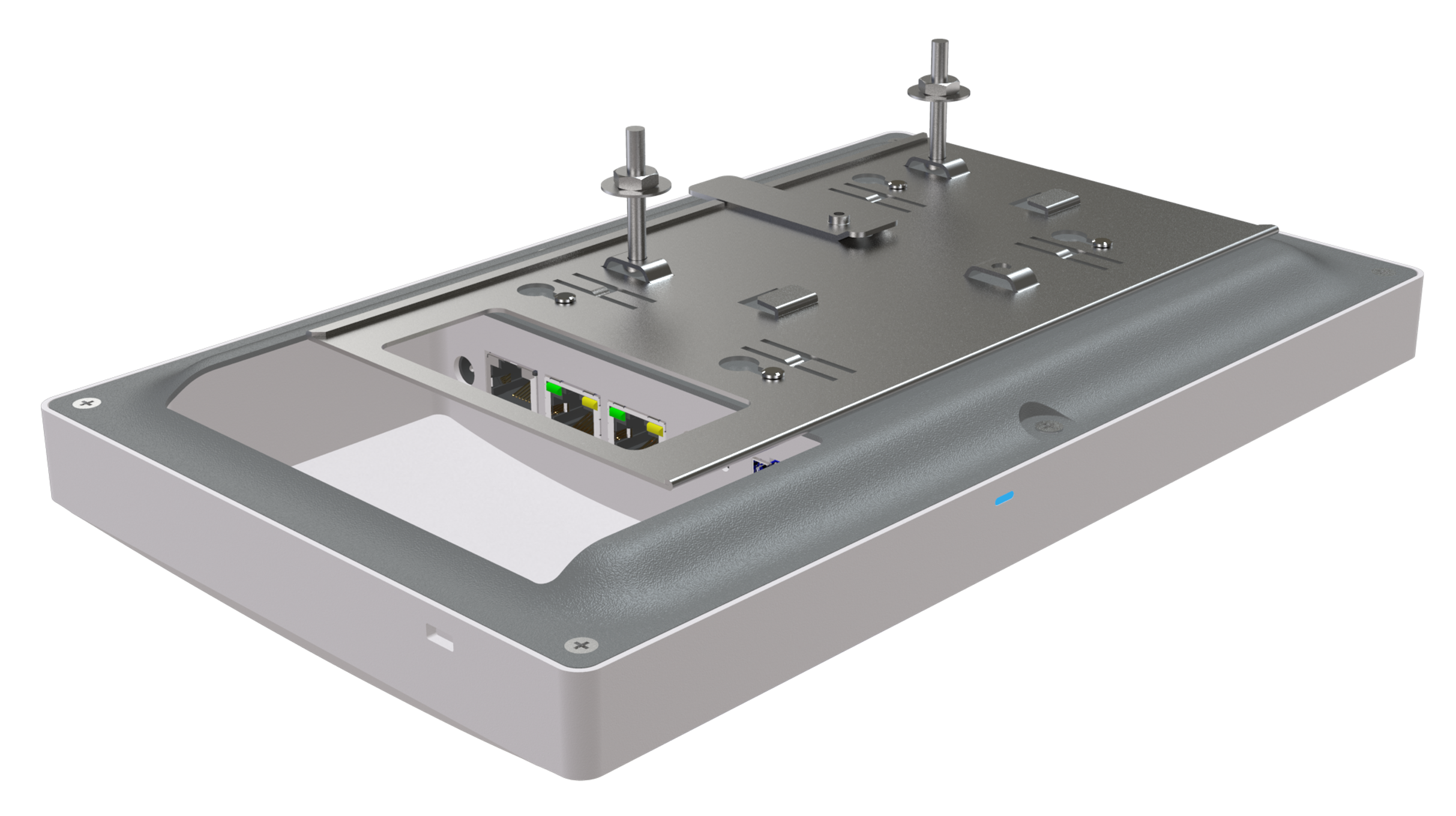

AIR-AP620C-AX(V2)
Powering the Next Generation of Enterprise Wireless.
- Ultra-High Wi-Fi 7 Performance
- Intelligent RF Optimization
- Enterprise-Grade Connectivity
- Enhanced User Experience
- Enterprise Security
Product Overview
The AIRPRO AIR-AP620C-AX (V2) is a next-generation enterprise Wi-Fi 7 indoor access point designed to deliver ultra-high-performance wireless connectivity for modern digital workplaces, campuses, hospitality environments, healthcare facilities, and high-density enterprise deployments.
Built on the IEEE 802.11be standard, the AIR-AP620C-AX (V2) provides tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz with an aggregate wireless capacity of up to 9.33 Gbps. Advanced Wi-Fi 7 technologies including 4096-QAM, Multi-Link Operation (MLO), intelligent RF optimization, and high-speed multi-gigabit uplinks ensure exceptional throughput, lower latency, and enhanced user experiences in demanding wireless environments.
The AP supports flexible deployment modes including Fit, Fat, and Bridge operation, enabling seamless integration into enterprise wireless architectures.
Key Features
Ultra-High Wi-Fi 7 Performance
- Up to 9.33 Gbps aggregate wireless throughput
- Tri-band operation:
- 2.4 GHz
- 5 GHz
- 6 GHz
- Supports IEEE 802.11a/b/g/n/ac/ax/be
- Advanced 4096-QAM modulation for higher transmission efficiency
- Optimized for high-density enterprise environments
Intelligent RF Optimization
Advanced RF management capabilities help maintain optimal wireless performance across dynamic enterprise environments.
Features include:
- Dynamic Channel Adjustment (DCA)
- Transmit Power Control (TPC)
- RF environment scanning
- Intelligent interference mitigation
- Airtime fairness optimization
- Smart client steering and roaming
Enterprise-Grade Connectivity
Designed for modern enterprise networks with high-speed wired connectivity.
Uplink Interfaces
- 1 × 1/2.5G Ethernet Port
- 1 × 1/10G SFP+ Port
Additional Interfaces
- 1 × Gigabit Downlink Port
- USB 2.0
- RJ-45 Console Port
- BLE Support
Enhanced User Experience
The AIR-AP620C-AX (V2) incorporates advanced wireless technologies to improve coverage, reliability, and performance.
Advanced Wireless Technologies
- Multi-Link Operation (MLO)
- Transmit Beamforming (TxBF)
- Maximum Ratio Combining (MRC)
- Space-Time Block Coding (STBC)
- Low-Density Parity-Check (LDPC)
- A-MPDU / A-MSDU aggregation
Enterprise Security
Comprehensive enterprise-class security mechanisms protect users, devices, and wireless infrastructure.
Security Features
- WPA / WPA2 / WPA3
- 1X Authentication
- Portal Authentication
- WIDS / WIPS
- MAC Authentication
- AD/LDAP Authentication
- Dynamic & Static Blacklists
- Wireless User Isolation
- Management Frame Protection (802.11w)
Flexible Deployment Modes
Supports multiple deployment architectures for enterprise flexibility.
- Fit AP Mode
- Fat AP Mode
- Bridge Mode
Centralized management is supported through AIRPRO wireless controllers.
Wi-Fi 7 Technology Enhancements
| 4096-QAM | Higher throughput and improved spectral efficiency |
| Multi-Link Operation (MLO) | Simultaneous multi-band transmission for lower latency |
| TxBF | Enhanced signal focusing for improved coverage |
| MRC | Improved receiver sensitivity |
| STBC | Increased transmission reliability |
| LDPC | Efficient forward error correction |
| Frame Aggregation | Improved transmission efficiency |
Hardware Specifications
| Dimensions | 260 × 160 × 32.5 mm |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Aggregate Throughput | Up to 9.33 Gbps |
| Spatial Streams | 12 Streams |
| Antennas | Built-in 2.4G / 5G / 6G Antennas |
| Max Power Consumption | <25.5W |
| Power Supply | 802.3af/at PoE or 48V DC |
| BLE | Supported |
| USB Port | 1 × USB 2.0 |
| Console Port | RJ-45 |
| Protection Rating | IP41 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | –40°C to +70°C |
Wireless Performance
| Radio | Maximum Data Rate |
| 2.4 GHz | 688 Mbps |
| 5 GHz | 2882 Mbps |
| 6 GHz | 5760 Mbps |
WLAN Features
| Dynamic Channel Adjustment | Yes |
| Transmit Power Control | Yes |
| SSID Hiding | Yes |
| Airtime Fairness | Yes |
| Intelligent Roaming | Yes |
| High-Density Optimization | Yes |
| Mesh Networking | Yes |
| IPv6 Forwarding | Yes |
| Local Forwarding | Yes |
| QoS / WMM | Yes |
| Bandwidth Control | Yes |
| Load Balancing | Yes |
| Multicast Enhancement | Yes |
Quality of Service (QoS)
Advanced QoS capabilities ensure optimized application delivery for voice, video, and mission-critical traffic.
Features include:
- WMM Support
- Priority Mapping
- SSID-based QoS Policies
- VLAN-based QoS Policies
- L2–L4 Packet Classification
- Bandwidth Limiting
- Call Admission Control (CAC)
Management & Maintenance
The AIR-AP620C-AX (V2) supports centralized and simplified wireless network management.
Management Features
- Centralized Controller Management
- Local & Remote Maintenance
- Syslog Support
- Alarm & Fault Detection
- Traffic Statistics
- Remote Probe Analysis
- Watchdog Protection
Ideal Deployment Scenarios
- Enterprise Offices
- Smart Campuses
- Hospitality & Hotels
- Healthcare Facilities
- Educational Institutions
- Large Retail Environments
- High-Density Public Venues
AirPro Enterprise Wireless
Delivering next-generation Wi-Fi 7 connectivity with intelligent performance optimization, enterprise-grade security, and scalable wireless architecture for modern digital enterprises.
